Dimmer Bailey Tradim
Add to selection
General information
Ordercode YESSS
7284-0289
Product code
144089
EAN code
8714681440896
Product group
Dimmer
Brand
Bailey
Serie
Tradim
Type
LED Wall

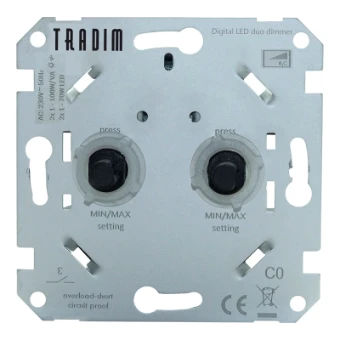

Tradim 2496 Digital Duo Dimmer LED 2 x 1-100W
Tradim 2496 Digital Duo Dimmer LED 2 x 1-100W
Product description
Tradim 2496 Digital Duo Wall dimmer duo 2 x 1-100W/VA LED till 50W/230V per channel RC Rotary dimmer
Product specifications
Assembly arrangement
Basic element
Method of operation
Turn/push button
Light value memory
Yes
App control via Bluetooth
No
Dimming phase cut-on
No
Serial dimmer
No
Dimming phase cut-off
Yes
Type of load
Universal and LED Retrofit
Substation input
No
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
Suitable for degree of protection (IP)
IP20
Transparent
No
Nominal voltage
220 - 240 V
Nominal power
1 - 100 VA
Frequency
50 - 50 Hz
Impact strength
IK00
Device width
70 mm
Device height
70 mm
Device depth
17 mm
Connection type
Screwed terminal
Core cross section
2.5 - 2.5 mm²
Min. depth of built-in installation box
33 mm
