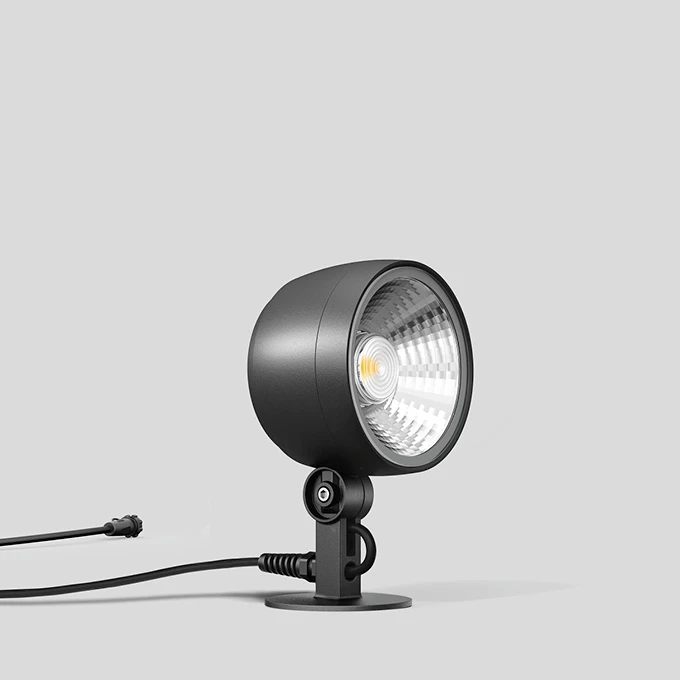

Downlight/spot/floodlight BEGA 84489

Add to selection
General information
Ordercode YESSS
6997-9951
Product code
84489K3
EAN code
4044017329583
Product group
Downlight/spot/floodlight
Brand
BEGA
Serie
84489
Type
84489K3
Leistungsscheinwerfer, Grafit 3000 K Leistungsscheinwerfer, Grafit 3000 K
Product description

BEGA Leistungsscheinwerfer 84489K3 mit Erdspieß, ortsveränderlich. Streuende rotationssymmetrische Lichtstärkeverteilung. BEGA Hybrid Optics® Hocheffiziente und verlustarme Lichtverteilung durch Reflektor und optischer Linse. LED, 19,3 W Leuchten-Anschlussleistung, Leuchten-Lichtstrom 1911 lm, Halbstreuwinkel 46°, Farbtemperatur 3000 K. Farbwiedergabeindex (CRI) > 90. Mit austauschbarem BEGA LED-Modul mit Übertemperaturschutz und einer Lebenserwartung von mindestens 50.000 Betriebsstunden. 20-jährige Nachliefergarantie auf das LED-Modul und die Verschleißteile. Mit LED-Netzteil 220-240 V, 50-60 Hz. Schutzart IP 65. Leuchte aus Aluminiumguss, Aluminium und Edelstahl Beschichtungstechnologie BEGA Unidure® , Farbe Grafit. Erdspieß aus glasfaserverstärktem Kunststoff (Polyamid). Sicherheitsglas klar. Reflektoroberfläche aus eloxiertem Reinstaluminium. Schwenkbereich -80°/+90°. Anschlussfertig mit 5 m Anschlussleitung X05RN-F FEP 2 x 1 qmm + 1G2,5 qmm und Steckverbindung. Abmessungen: 145 x 235 x 100 mm.

Product specifications
Suitable for suspended mounting
No
Lamp type
LED exchangeable
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotatable
With light source
Yes
Housing colour
Anthracite
Suitable for low voltage cable system
No
With light sensor
No
Light distribution
Symmetric
Lamp holder
None
Type of control gear
Not required
Suitable for lamp power
16.8 - 16.8 W
With control gear
Yes
Nominal current
0.1 - 0.1 mA
Max. system power
19.3 W
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
3000 - 3000 K
LED nominal current at constant current
0.1 - 0.1 mA
Housing material
Other
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Length
100 mm
Dimming GPRS
No
Width
145 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
235 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Rated lifetime L70/B50 at 25 °C
170000 h
Rated ambient temperature according to IEC 62722-2-1
25 - 40 °C
Exchangeable control gear
Yes
Constant light output (CLO)
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
