Ceiling-/wall luminaire Dotlux
Add to selection
General information
Ordercode YESSS
6656-2915
Product code
3292-240060
EAN code
4260523599252
Product group
Ceiling-/wall luminaire
Brand
Dotlux
Type
3292-240060

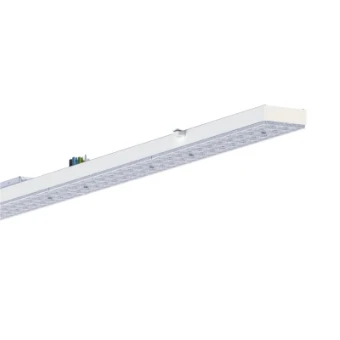

DOTLUX LED luminaire insert LINEAselect 1437mm 25-75W 4000K dimmable 1-10V
DOTLUX LED luminaire insert LINEAselect 1437mm 25-75W 4000K dimmable 1-10V 60°
Product description
Quick-release fasteners for all connectionsTool-free mounting rail with integrated through-wiringLuminaire insert with flexible phase selection and power adjustment via DIP switch on the power supply unitOptimized transmittance of the diffusing lensSelf-cooling LED moduleHigh luminous efficacy thanks to optimized profile designEasily replaceable light units with excellent price-performance ratioLong service life thanks to oversized coolingSuitable for central batteryAdjustable output thanks to POWERselect:14100@ 75W12250@ 65W10250@ 55W 8500@ 45W 7850@ 40W 6800@ 35W 5800@ 30W 4750@ 25W
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
No
Lamp type
LED exchangeable
With light source
Yes
With control gear
Yes
Suitable for emergency lighting
No
Colour temperature
4000 - 4000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
Yes
Dimming DMX
No
Material cover
Plastic matt/satinized
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
41-80° - Wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
1437 mm
Dimming programmable
No
Width
65 mm
Dimming RF
No
Height/depth
45 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
No
Protection class according to IEC 61140
I
Impact strength
IK04
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
75 W
With air slots
No
Voltage type
AC/DC
Rated lifetime L70/B50 at 25 °C
200000 h
Colour of light
White
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Suitable for lamp power
25 - 75 W
Power factor
0.981
Connection type
Push-in clamp
Surface protection housing
Powder coating
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16 (MCB)
22
Max. number of luminaires per miniature circuit breaker C16 (MCB)
36
Unified Glare Ratio (UGR)
24
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
