Downlight/spot/floodlight Dotlux

Add to selection
General information
Ordercode YESSS
7602-8837
Product code
4866-130015
EAN code
4255678600052
Product group
Downlight/spot/floodlight
Brand
Dotlux
Type
4866-130015

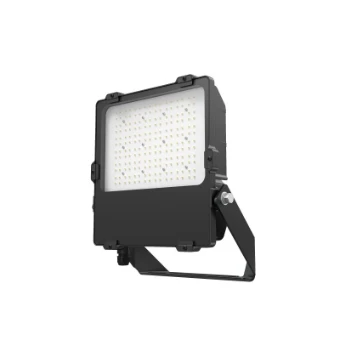

DOTLUX LED-Fluter LENSplus 150W 3000K 15° Abstrahlwinkel DOTLUX LED-Fluter LENSplus 150W 3000K 15° Abstrahlwinkel
Product description

Große Vielfalt an verschiedenen Abstrahlwinkeln ermöglicht für jede Situation eine optimale Ausleuchtung Zuverlässiger Betrieb durch hocheffiziente Lumileds®-LEDs mit 3-Step MacAdam-Binning Massives, wasserfestes, ADC12-Aluminium-Druckgussgehäuse mit Druckausgleichsventil (IP 66/IK08) und hochwertiger Pulverbeschichtung von Akzo Nobel ESG-Glas "ULTRA CLEAR" hochtransparentes Glas für ausgezeichnete Lichtfarbe und verbesserte Lichtausbeute Langlebige Industrienetzteile mit 10kV Überspannungsschutz Gebogener Montagebügel ermöglicht einfachste Montage ohne den Bügel demontieren zu müssen (frei drehbar 320°) Einfachste Installation durch Kabel Connector Austauschbare Komponenten dadurch reparaturfähig Nachhaltiges Produktdesign durch einfach austauschbare Komponenten

Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Housing colour
Black
Suitable for low voltage cable system
No
With light sensor
No
Light distribution
Symmetric
Type of control gear
LED operating device current-controlled
With control gear
Yes
Surface protection
Powder coating
Max. system power
150 W
Surface brushed
No
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
11-20° - Narrow beam
Dimming potentiometer (integrated)
No
Length
417 mm
Width
320 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
75 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Focal lens
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Power factor
0.98
Type of wiring
Ending
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
Yes
Exchangeable control gear
No
Dimming DALI-2
No
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
6
Max. number of luminaires per miniature circuit breaker C16 (MCB)
8
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
more specifications
Product information
Manufacturer's website
