Ceiling-/wall luminaire Dotlux
Add to selection
General information
Ordercode YESSS
7365-5341
Product code
5061-040090-NOT
EAN code
4260629148545
Product group
Ceiling-/wall luminaire
Brand
Dotlux

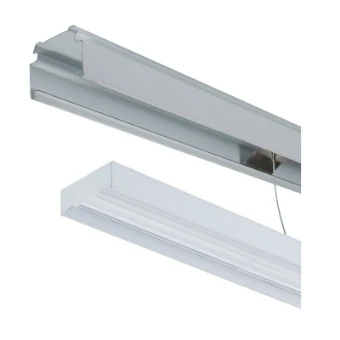

DOTLUX LED luminaire insert LINEAlock 1437mm 25-75W 4000K dimmable 1-10V
DOTLUX LED luminaire insert LINEAlock 1437mm 25-75W 4000K dimmable 1-10V 90*110° with emergency lighting module
Product description
Glare-reduced 90° PMMA lens optics UGRExtremely quick mounting thanks to adjustable spring clipsEnvironmentally friendly continued use of your existing trunking systemIndependent, integrated cable system (8 x 1.5 mm2 incl. emergency lighting charging current) with quick connectorsFlexible phase selection and power adjustment directly in the luminaireLong service life thanks to oversized coolingIncl. two safety ropes/mounting aidIncl. emergency lighting module with lithium-ion battery 3h 1200LmAdjustable output thanks to POWERselect:13550lm@ 75W11850lm@ 65W10200lm@ 55W 8650lm@ 45W 7850lm@ 40W 6750lm@ 35W 5850lm@ 30W 4800lm@ 25W
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
No
Lamp type
LED exchangeable
With light source
Yes
With control gear
Yes
Colour temperature
4000 - 4000 K
Material housing
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Colour housing
White
Dimming DALI
No
Suitable for light line configuration
Yes
Dimming DMX
No
Material cover
Plastic matt/satinized
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Light sharing
Symmetric
Dimming mains voltage modulation
No
Beam angle
Extreme wide beam >80°
Dimming phase cut-off
No
Light outlet
Direct
Dimming phase cut-on
No
Length
1437 mm
Dimming programmable
No
Width
67 mm
Dimming RF
No
Height/depth
25 mm
Outer diameter
0 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Built-in height/depth
0 mm
With movement sensor
No
Light distributor
None
With light sensor
No
Protection class
II
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
75 W
With air slots
No
Voltage type
AC/DC
Rated life time L70/B50 at 25 °C
200000 h
Colour of light
White
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC62722-2-1
0 - 45 °C
Suitable for lamp power
25 - 75 W
Power factor
0.95
Type of wiring
Through wiring included
Connection type
Push-in clamp
Surface protection housing
Powder coating
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM6
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C16
36
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Suitable for wall mounting
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Compatible with Casambi
No
