Ceiling-/wall luminaire Dotlux
Add to selection
General information
Ordercode YESSS
6950-1691
Product code
4921-0FW110
EAN code
4260629145551
Product group
Ceiling-/wall luminaire
Brand
Dotlux

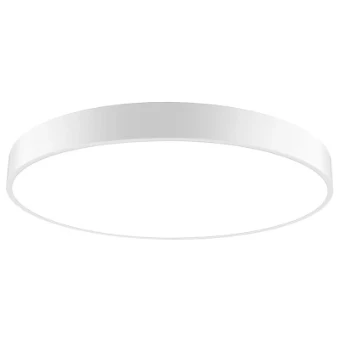

DOTLUX LED light DISC 45W COLORselect
DOTLUX LED light DISC 45W COLORselect
Product description
Can be used flexibly as required: available as a ceiling, wall, surface-mounted or pendant luminaire in 3 sizesIndividually adjustable for a wide range of applications thanks to COLORselect technology and dimmable DALI 2 power supply unitNatural color perception thanks to the extra high CRI value >92Modern powder-coated aluminum housing (white - similar to RAL9003) with stepped luminaire housing 55mm highQuick and easy installation via EASYbase platformPleasant feeling of space thanks to indirect light component (can be switched on)Sustainable product design thanks to easily replaceable components
Product specifications
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of lamps
0
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Colour temperature
3000 - 5500 K
Material housing
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Colour housing
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, structured
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
No
Light sharing
Symmetric
Dimming mains voltage modulation
No
Beam angle
Extreme wide beam >80°
Dimming phase cut-off
No
Light outlet
Direct/indirect
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Height/depth
91 mm
Outer diameter
433 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
Yes
Built-in height/depth
91 mm
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
No
Protection class
I
Impact strength
IK05
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
45 W
With air slots
Yes
Voltage type
AC/DC
Rated life time L70/B50 at 25 °C
200000 h
Colour of light
Multi-coloured
Colour rendering index CRI
90-100
Degree of protection (NEMA)
2
Rated ambient temperature according to IEC62722-2-1
-20 - 40 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
45 - 45 W
Power factor
0.97
Type of wiring
Ending
Conductor cross section
2.5 mm²
Connection type
Other
Surface protection housing
Other
Exchangeable control gear
Yes
Dimming DALI-2
Yes
Colour consistency (McAdam ellipse)
SDCM6
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
90 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
87 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
11 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
86 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
86 %
Max. number of luminaires per miniature circuit breaker B16
44
Max. number of luminaires per miniature circuit breaker C16
55
Flickering value Pst LM
0
Stroboscope effect value SVM
0
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Compatible with Casambi
No
