Light ribbon-/hose/-strip Dotlux
Add to selection
General information
Ordercode YESSS
7531-2018
Product code
5169-060160
EAN code
4260629149979
Product group
Light ribbon-/hose/-strip
Brand
Dotlux

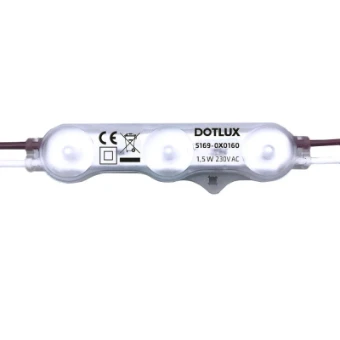

DOTLUX LED module ACplus 1.5W 160° IP67 6000K 100-piece chain
DOTLUX LED module ACplus 1.5W 160° IP67 6000K 100-piece chain
Product description
LED module for direct connection to 230V, without additional power supply unit160° special lens enables homogeneous illumination even with shallow installation depthsQuick installation thanks to 20m chain with 100 modules, can be shortened individuallySeveral chains can be connected in parallel for larger areas. (Series connection of several chains not possible)Non-yellowing housing ensures stable light outputEasy installation of the individual modules using screw holes or backing-free adhesive tapeWe recommend the use of overvoltage protection Art.5044
Product specifications
Mounting method
Other
Lamp type
LED not exchangeable
Voltage type
AC
Number of nodes per foot
2
Number of nodes per meter
5
Luminous flux per meter
750 lm
Colour temperature
6000 - 6000 K
Type of control gear
Not required
Width
20 mm
Rated life time L70/B50 at 25 °C
50000 h
With end piece
No
With connection set
No
Self-adhesive
Yes
Degree of protection (NEMA)
1
Protection class
II
Max. system power
1.5 W
Colour of light
White
Colour rendering index CRI
80-89
Power factor
0.94
Height/depth
11 mm
With protective cover
No
Type of wiring
Suitable for through wiring
Conductor cross section
0.75 mm²
Connection type
Solder
Suitable for dimmer
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
0.5 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
3 %
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Beam angle adjustable
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Degree of protection (IP)
IP67
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
E
Luminaire efficacy
100 lm/W
