General information
Ordercode YESSS
7561-3271
Product code
4866-030015
EAN code
4260712978240
Product group
Downlight/spot/floodlight
Brand
Dotlux

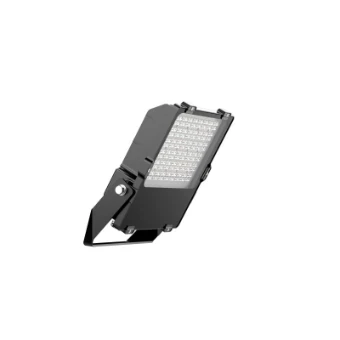

DOTLUX LED floodlight LENSplus 150W 3000K 15° beam angle DOTLUX LED floodlight LENSplus 150W 3000K 15° beam angle
Product description

Large variety of different beam angles enables optimum illumination for every situationReliable operation thanks to highly efficient Lumileds® LEDs with 3-step MacAdam binningSolid, waterproof, ADC12 die-cast aluminum housing with pressure equalization valve (IP 66/IK08) and high-quality powder coating from Akzo NobelESG glass \"ULTRA CLEAR\" highly transparent glass for excellent light color and improved light outputDurable industrial power supply units with 10kV overvoltage protectionCurved mounting bracket enables easy mounting without having to dismantle the bracket (freely rotatable 320°)Incl. 1.5m UV-stable rubber cable (H05RN-F open ends)Replaceable components, therefore repairableSustainable product design thanks to easily replaceable components

Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Colour housing
Black
Suitable for low voltage cable system
No
With light sensor
No
Light sharing
Symmetric
Type of control gear
LED operating device current-controlled
With control gear
Yes
Surface protection
Powder coating
Max. system power
150 W
Surface brushed
No
Colour temperature
3000 - 3000 K
Material housing
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Narrow beam 11 - 20°
Dimming potentiometer (integrated)
No
Length
375 mm
Width
320 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
75 mm
Voltage type
AC/DC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Focal lens
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated life time L70/B50 at 25 °C
100000 h
Power factor
0.98
Type of wiring
Ending
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Yes
Exchangeable control gear
No
Dimming DALI-2
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
6
Max. number of luminaires per miniature circuit breaker C16
8
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
Not required
Operation by Bluetooth
No
more specifications
