Shutting actuator for bus system Eaton Moeller series

Add to selection
General information
Ordercode YESSS
7565-1187
Product code
EP-500363
EAN code
09010653003564
Product group
Shutting actuator for bus system
Brand
Eaton
Serie
Moeller series
Type

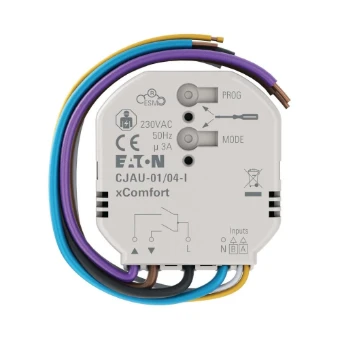

CJAU-01/04-I
Shutter actuator flush-box mount with local input Shutter actuator flush-box mount with local input
Product description

The flush-mounted shutter actuators with local input are particularly characterized by their slim dimensions and extended control functionality. The actuator control drives of shutters, blinds, shades etc. are equipped with a 230 V AC motor (up to 3 A) and an integrated end-position switch. The device tracks the actual position of the shades and has predefined, selectable profiles to optimize the operation of the to be controlled application, e.g. shutters, slatted blinds, awnings etc. Furthermore, the actuator also provides numerous safety functions such as a safety position in case of wind and / or rain as well as a lockout protection to ensure shutters or blinds will not close if the terrace door is open. The mains-powered solution is typically placed in an installation box and combined with either a socket outlet or a wireless switch. The two 230 V AC local input sensors enable the actuator to be used with an existing or any other mechanical push-switch available on the market. Note: Never connect multiple shading motors in parallel to a single shutter actuator without integrating a cut-off relay.

Product specifications
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
xComfort
Mounting method
Flush-mounted
Radio frequency bidirectional
Yes
Width in number of modular spacings
3
With bus connection
Yes
Local operation/hand operation
No
With LED indication
Yes
Bus module detachable
No
Number of inputs
1
Switching current (resistive)
3 A
Max. switching power
690 W
Max. number of venetian-blind outputs
1
With switch function
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
18 mm
Power consumption
0.19 W
