Switch disconnector (AC) Eaton Moeller series
Add to selection
General information
Ordercode YESSS
0308-7160
Product code
045992
EAN code
04015080459927
Product group
Switch disconnector (AC)
Brand
Eaton
Serie
Moeller series
Type
T0-2-1/V/SVB-SW

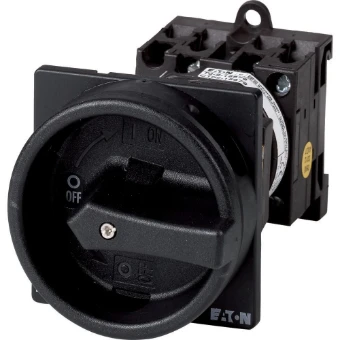

Main switch, T0, 20 A, rear mounting, 2 contact unit(s),
Main switch, T0, 20 A, rear mounting, 2 contact unit(s), 3 pole, STOP
Product description
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Product specifications
Rated permanent current Iu
20 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
5.5 kW
Number of switches
1
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
20 A
Version as emergency stop installation
No
Rated operation power at AC-3, 400 V
5.5 kW
Max. rated operation voltage Ue AC
690 V
Rated short-time withstand current lcw
0.32 kA
Switching power at 400 V
5.5 kW
Conditioned rated short-circuit current Iq
6 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Black
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Width
65 mm
Height
74 mm
Depth
128 mm
