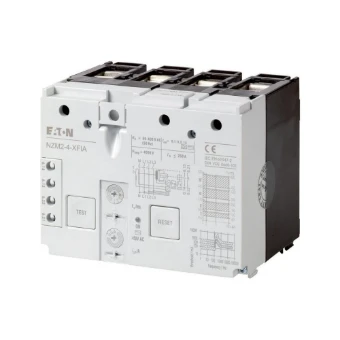

Residual current release for power circuit breaker Eaton
Add to selection
General information
Ordercode YESSS
0307-7122
Product code
292346
EAN code
04015082923464
Product group
Residual current release for power circuit breaker
Brand
Eaton
Earth-fault release, 0.3-1A AC/DC sensitive, 4p
Earth-fault release, 0.3-1A AC/DC sensitive, 4p
Product description
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: AC/DC current sensitivity according to the core-balance principle (in range 0 … 100 kHz). Observe response threshold dependence on frequency! See “Frequency response” characteristic curve. Adjusting buttons can be sealed. Can be used for NZM2-4, N2-4
Product specifications
Rated control supply voltage at AC 50 Hz
50 - 400 V
Rated control supply voltage at AC 60 Hz
50 - 400 V
Rated control supply voltage at DC
0 - 0 V
Rated fault current
0.3 - 1 A
Max. power on-delay time
100 ms
Delay adjustable
Yes
Max. rated operation voltage Ue
400 V
