Auxiliary contact block Eaton
Add to selection
General information
Ordercode YESSS
0307-7209
Product code
259430
EAN code
04015082594305
Product group
Auxiliary contact block
Brand
Eaton

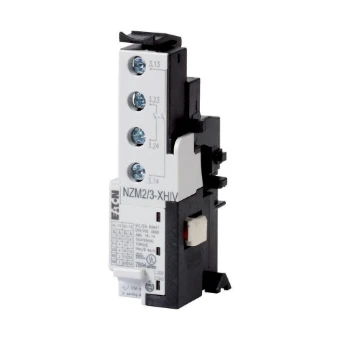

Auxiliary contact, 2early N/O, operates as an early-make contact
Auxiliary contact, 2early N/O, operates as an early-make contact
Product description
Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. For interlocking and load shedding circuits, as well as for early make of the undervoltage release in main switch/emergency switching off applications. Not in conjunction with undervoltage release NZM..-XU.., Shunt release NZM..-XA.. or remote operator NZM..-XR.. Early make (manual operation) approx. 20..90ms. Can be used for: NZM2(-4), 3(-4), PN2(-4), 3(-4), N(N/O)2(-4), 3(-4)
Product specifications
Mounting method
Other
Number of contacts as change-over contact
0
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of fault-signal switches
0
Type of electric connection
Screw connection
Model
Integrable
Lamp holder
None
Rated operation current Ie at AC-15, 230 V
4 A
