Wiring set for power circuit breaker Eaton
Add to selection
General information
Ordercode YESSS
0307-7662
Product code
266836
EAN code
04015082668365
Product group
Wiring set for power circuit breaker
Brand
Eaton

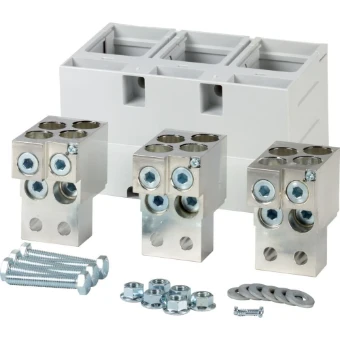

Tunnel terminal, 3p, 1 switch side, size 4
Tunnel terminal, 3p, 1 switch side, size 4
Product description
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. A standard with control circuit terminal for 1x0.75-2.5 mm² (18-14 AWG) or 2x0.75-1.5 mm² (18-16 AWG) copper conductors. Can be fitted to circuit-breaker with screw connection. use ferrules with flexible and highly flexible conductors. Cover NZM4(-4)-XKSA must be fitted (included as standard). Can be used for: NZM4, N(S)4
Product specifications
Suitable for number of poles
3
Model
Other
