Motor protection circuit-breaker Eaton
Add to selection
General information
Ordercode YESSS
2975-3467
Product code
168484
EAN code
04015081649648
Product group
Motor protection circuit-breaker
Brand
Eaton

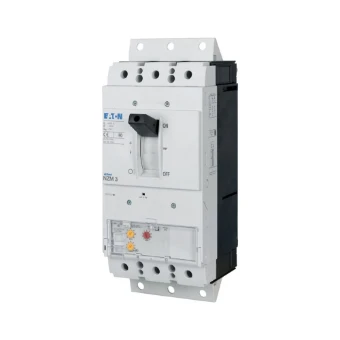

Circuit-breaker, 3p, 350A, plug-in module
Circuit-breaker, 3p, 350A, plug-in module
Product description
Circuit-breakers of the NZM..-ME series cover all applications with only four compact sizes and are suitable for the IEC market. The mounting is always flexible due to the modular function groups. With electronic release for the motor protection with phase failure sensitivity. Notes: IEC/EN 60947-4-1, IEC/EN 60947-2, r.m.s. value measurement and thermal memory, adjustable time delay setting to overcome current peaks tr:2-20 at 6xIr as well as infinity (without overload release)
Product specifications
Adjustment range undelayed short-circuit release
700 - 4900 A
Rated operating voltage
690 - 690 V
With thermal protection
Yes
Device construction
Built-in device plug-in technique
Degree of protection (IP)
IP20
Overload release current setting
175 - 350 A
Rated short-circuit breaking capacity lcu at 400 V, AC
35 kA
Phase failure sensitive
Yes
Switch off technique
Electronic
Rated permanent current Iu
350 A
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 230 V
110 kW
Type of control element
Rocker lever
Rated operation power at AC-3, 400 V
200 kW
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Height
215.2 mm
Width
140 mm
Depth
335 mm
