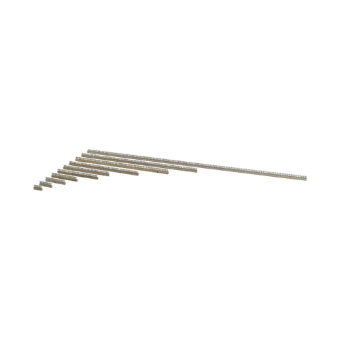

Rail terminal bar Eaton
Add to selection
General information
Ordercode YESSS
7588-4669
Product code
219726
EAN code
09004852591137
Product group
Rail terminal bar
Brand
Eaton
KL-15 terminal bar, 2 x 25 mm2 + 13 x
KL-15 terminal bar, 2 x 25 mm2 + 13 x 16 mm2, max. 63 A
Product description
KL-15 terminal bar; 2 x 25 mm2 + 13 x 16 mm2, max. 63 A
Product specifications
Number of poles
1
Nominal current
63 A
Connection type
Screwing
Contact safe
No
Mounting method
Screw
Height
9 mm
Width
120 mm
Depth
7 mm
Number of inputs
2
Number of outputs
14
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
1.5 - 25 mm²
Conductor cross section, output
1.5 - 16 mm²
Conductor cross section, input AWG
0 - 0
Conductor cross section, output AWG
0 - 0
