Movement sensor / presence detector complete Esylux
Add to selection
General information
Ordercode YESSS
4389-5797
Product code
EB10430404
EAN code
4015120430404
Product group
Movement sensor / presence detector complete
Brand
Esylux

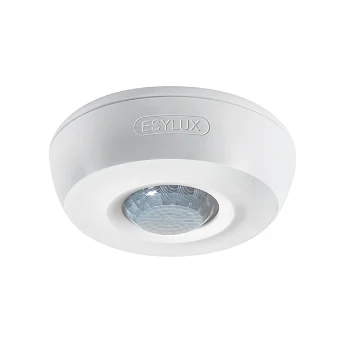

Ceiling-mounted motion detector MD 360/8 BASIC
Ceiling-mounted motion detector MD 360/8 BASIC
Product description
Motion detector with 360° field of detection For ceiling mounting. Range of up to 8 macross at a recommended installation height of 3 m for use in small rooms and passageways with very little or no natural lighting. 10 A high-performance relay. Zero-cross switching: Extension of the service life of the relay and bulbs with electronic ballasts (e.g. fluorescent lamps, LED) thanks to more gentle switching in zero-cross switching.. Factory setting for immediate operational readiness. Automatic lighting control. Additional switch input. Standard version as surface-mounted device, recessed ceiling mounting possible with accessories. Sensing range upgrade through parallel connection.
Product specifications
Model
Movement sensor
Colour
White
Degree of protection (IP)
IP40
Detection angle horizontal
180 - 360 °
Max. transmission range frontally
3 m
Forced switch on
Yes
Max. transmission range sideways
4 m
Max. switching power
2300 W
Creep-under protection
No
Response value sensitivity adjustable
No
Remote operation
No
Constant light control
No
Scan angle
360 °
HVAC-control
No
Forced switch off
Yes
Animal zone
No
Networkable
No
Optimum mounting height
3 m
Staircase monitoring
No
Bridging switch
No
With remote control
No
Diameter detection range on floor
8 m
Suitable for wireless transmission
No
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Suitable for ceiling mounting
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Connection type
Push-in clamp
Surface finishing
Matt
RAL-number (similar)
9010
Transparent
No
Min. switch-on time
15 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
30 min
Response value luminosity
5 - 1000 lx
Switching-on delay
30 s
Max. starting current
78 A
Pivoting range sensor, horizontal
0 - 0 °
Frequency
50 - 50 Hz
Pivoting range sensor, vertical
0 - 0 °
With alarm function
No
Suitable for C-load
Yes
Number of switching zones
1
Height
33 mm
Diameter
101 mm
Nominal voltage
230 - 230 V
Max. switching power LED
600 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Rückfeldüberwachung
No
Mit Akustiksensor
No
With connection cable
No
