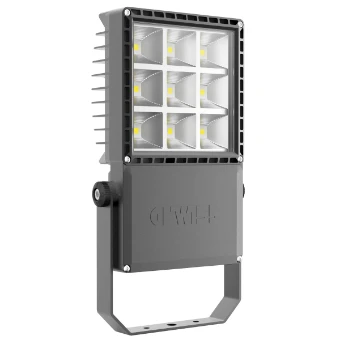

Downlight/spot/floodlight GEWISS LIGHTING
Add to selection
General information
Ordercode YESSS
7598-6546
Product code
GWP2175BD
EAN code
8034035005749
Product group
Downlight/spot/floodlight
Brand
GEWISS LIGHTING
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Colour housing
Grey
Suitable for low voltage cable system
No
With light sensor
No
Reflector
High-gloss
Light sharing
Symmetric
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
With control gear
Yes
Surface protection
Powder coating
Nominal current
700 - 700 mA
Max. system power
165 W
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
5700 - 5700 K
Material housing
Aluminium
Material cover
Glass structured
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Beam angle
Wide beam 41-80°
Dimming potentiometer (integrated)
No
Length
460 mm
Width
260 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
100 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
70-79
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Reflector
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated ambient temperature according to IEC62722-2-1
-30 - 50 °C
Power factor
0.9
Type of wiring
Ending
Number of poles
5
Conductor cross section
2.5 mm²
Connectable conductor cross section
2.5 - 2.5 mm²
Connection type
Push-in clamp
Suitable for workplace according to EN 12464-1
No
Colour consistency (McAdam ellipse)
SDCM5
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Dimming DALI-2
Yes
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
Yes
Colour temperature adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
1
Max. number of luminaires per miniature circuit breaker C16
3
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Operation by Bluetooth
No
Reflector colour
Silver
Product information
