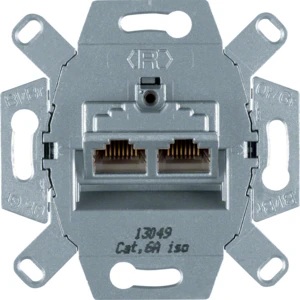

Data communication connection box copper (twisted pair) Hager
Add to selection
General information
Ordercode YESSS
1276-4437
Product code
G3140
Product group
Data communication connection box copper (twisted pair)
Brand
Hager
Type
G3140
Datendose 2 x Cat.6A-Anschlüsse 8/8
Datendose 2 x Cat.6A-Anschlüsse 8/8
Product description
Datendose für 2 Cat.6A-Anschlüsse 8/8 polig geschirmt.UAE Anschlussdose 2 x RJ45, Kategorie 6A / Klasse EA nach DIN EN50173-1, bis 500 MHz, 8 polige Ausführung, LSA Klemmen geeignet für starre Leiter AWG26/1 - AWG22/1 Zum Einbau in anreihbare Gerätedosen für Brüstungskanäle, mit reduzierter Einbautiefe zum bündigen Abschluß mit der Verschlußkontur des Brüstungskanals. Zur Verwendung mit Zentralscheiben UAE 2-fach mit Maß 55 x 55 mm.
Product specifications
Surface mounting
Yes
Duct installation
Yes
Connection type
Insulation displacement connector
Suitable for number of connectors
2
Floor box/subfloor mounted
No
Assembly arrangement
Basic element
Type of fastening
Screwing
Type of connector
RJ45 8(8)
With buses/couplings
No
Category
6
Colour
Other
Shielded buses
Yes
Shielded housing
Yes
Separate earthing connection
No
With label space
No
Compatible with third-party covers
Yes
Separate strain relief
No
Mounting method shielding connection
Clip
Outlet direction
Inclined
With dust cover
No
Degree of protection (IP)
IP20
Mechanical coding
Yes
Colour coding
No
Device width
71 mm
Device height
71 mm
Device depth
40 mm
Flush-mounted installation
Yes
With terminal resistor
No
Number of modules (module system)
1
