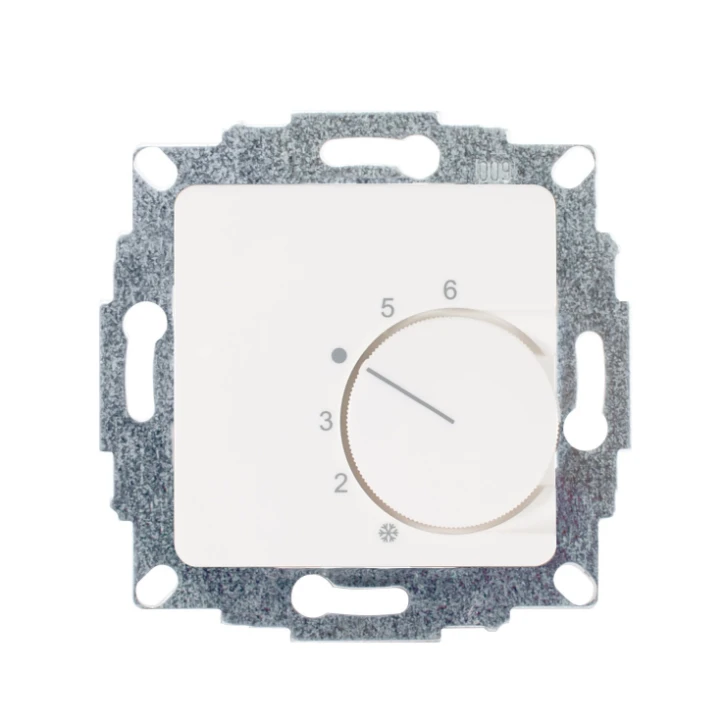

Room thermostat (non-industrial) Halmburger Raumtemperaturregler Bimetall
Add to selection
General information
Ordercode YESSS
5316-3613
Product code
1202
EAN code
4251369612021
Product group
Room thermostat (non-industrial)
Brand
Halmburger
Serie
Raumtemperaturregler Bimetall
Type
RTR-5020(rg)
Thermostat UP reinweiß glanz 50x50 230V Wechsler
Thermostat UP reinweiß glanz 50x50 230V Wechsler
Product description
Raumtemperaturregler u.P., 230 V, einschl. Zentralscheibe 50x50mm, ohne Abdeckrahmen, Wechslerkontakt 10(4)A Heizen, 5(2)A Kühlen, für Stellantriebe stromlos geschlossen und stromlos offen, Einstellbereich 5…30°C mit Bereichseinengung, Temperaturabsenkung, Berührungsschutzkappe, Farbe: reinweiß glänzend, ähnlich RAL9010, passend in nahezu alle Schalterprogramme mittels Zwischenrahmen 50x50mm (nicht im Lieferumfang enthalten)
Product specifications
Model
On/Off
Type of power supply
230 V AC
Connection
3-/4-wire
With receiver
No
External sensor
No
Thermal feedback
Parallel
Control characteristic
PID
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0.5 - 0.5 K
Adjustable differential
No
Temperature readable
No
With sound indicator
No
Sensor/feeler type
Bimetal
Mounting method
Flush-mounted
With display
No
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
10 A
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Explosion-proof
No
Colour
White
RAL-number
9010
Height
70.9 mm
Width
70.9 mm
Depth
41.3 mm
Class of the temperature control
I
Standby power consumption (solstandby)
0 W
Measuring range
5 - 30 °C
Suitable for cooling
Yes
Concealed operation
No
Contact type
Change-over contact (NO/NC)
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
