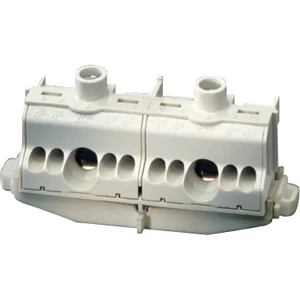

Single- and multi-pole terminal strip Hensel FIXCONNECT
Add to selection
General information
Ordercode YESSS
0035-8015
Product code
26001203
EAN code
4012591111351
Product group
Single- and multi-pole terminal strip
Brand
Hensel
Serie
FIXCONNECT
Type
FC L 10
Klemme 2 x 25qmm, 8 x 4 qmm, Befestigung auf
Klemme 2 x 25qmm, 8 x 4 qmm, Befestigung auf Tragschienen (Hutprofil 35 mm)
Product description
FIXCONNECT-Klemme 2 x 25 mm², 8 x 4 mm², Cu zur Montage auf Tragschiene.
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
1.5 - 25 mm²
Material insulation body
Thermoplastic
Mounting method
DIN rail (top hat rail) 35 mm
Connectable conductor cross section fine-strand with cable end sleeve
6 - 25 mm²
Connectable conductor cross section solid-core
1.5 - 25 mm²
Connectable conductor cross section multi-wired
1.5 - 25 mm²
Rated current In
101 A
Rated voltage
690 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Plug-in connection
Number of poles
1
Number of clamp positions per pole
10
Operating temperature
40 - 40 °C
Inflammability class of insulation material according to UL94
Other
Closing plate required
No
Colour
Grey
