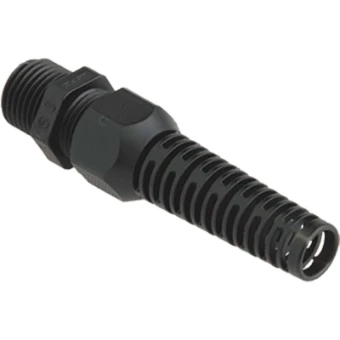

Cable gland KAISER Syntec
Add to selection
General information
Ordercode YESSS
1493-1682
Product code
1546.12.1.06
EAN code
7611614079004
Product group
Cable gland
Brand
KAISER
Serie
Syntec
Type
1546.12.1.06
Kabelverschraubung Syntec Kst. M12x1.5, Kabel Ø 2.5-6.5 mm (UL 5.0-6.5
Kabelverschraubung Syntec Kst. M12x1.5, Kabel Ø 2.5-6.5 mm (UL 5.0-6.5 mm), schwarz RAL 9005, mit Knickschutz
Product description
Kabelverschraubungen Syntec® Kunststoff mit Lamellentechnik und Knickschutz (1546.12.1.06). Gewindelänge: Lang | Einsatztemperatur: -30°C / +100°C | Klemmtechnik: Lamellentechnik
Product specifications
Material quality
Polyamide (PA)
Thread type
Metric
Nominal thread size metric/PG
12
Suitable for cable diameter
2.5 - 6.5 mm
With strain relief
Yes
Material
Plastic
Degree of protection (IP)
IP68
Shock resistant
Yes
Halogen free
Yes
With locknut
No
Model
Straight
Bend radius protection/trumpet flare
Yes
Thread length
12 mm
Pitch thread
1.5 mm
Wrench width
15 mm
RAL-number
9005
Glass-fibre reinforced
No
Colour
Black
Multi seal area
No
Flat cable coupling
No
Type of sealing
Sealing ring
Separable screw gland
No
Operating temperature
-30 - 100 °C
