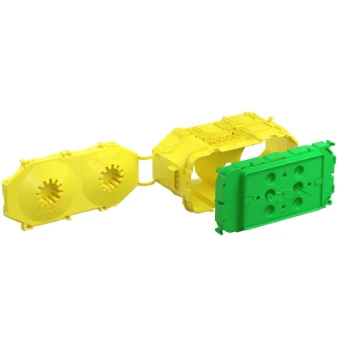

Box/housing for built-in mounting in the wall/ceiling KAISER
Add to selection
General information
Ordercode YESSS
7281-2884
Product code
1269-03
EAN code
4013456551961
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Product specifications
Mounting method
Concrete building
Shape
Other
Provided with revolving ring
No
Air tight
No
Connectable
No
With screws
No
Construction type
Built-in installation box (device box)
Model
3-fold
Equipped with
None
Length
160 mm
Depth
91 - 91 mm
Width
75 mm
Inner depth
71 mm
For number of electric fittings
3
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
For tube diameter
Other
Housing feed-through by nozzle
No
Suitable for cable diameter
0 - 16 mm
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
No
Number of inlets
9
Material
Plastic
Pipe locking optional
No
Halogen free
No
Colour
Yellow
Degree of protection (IP)
IP20
Cover attachment
Snapped on
Sealable
No
Circuit integrity
None
With screening
No
Max. conductor cross section
4 mm²
Cover model
Mounting cover
Transparent cover
No
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Anzahl der nicht einstellbaren Gerätebefestigungslaschen
0
Anzahl der einstellbaren Gerätebefestigungslaschen
0
With partition panel
No
Konform BS 4662
No
