Light ribbon/-hose/-strip Plejd LST
Add to selection
General information
Ordercode YESSS
7594-1009
Product code
LST-01-2M
EAN code
7330018323086
Product group
Light ribbon/-hose/-strip
Brand
Plejd
Serie
LST
Type
LST-01-2M

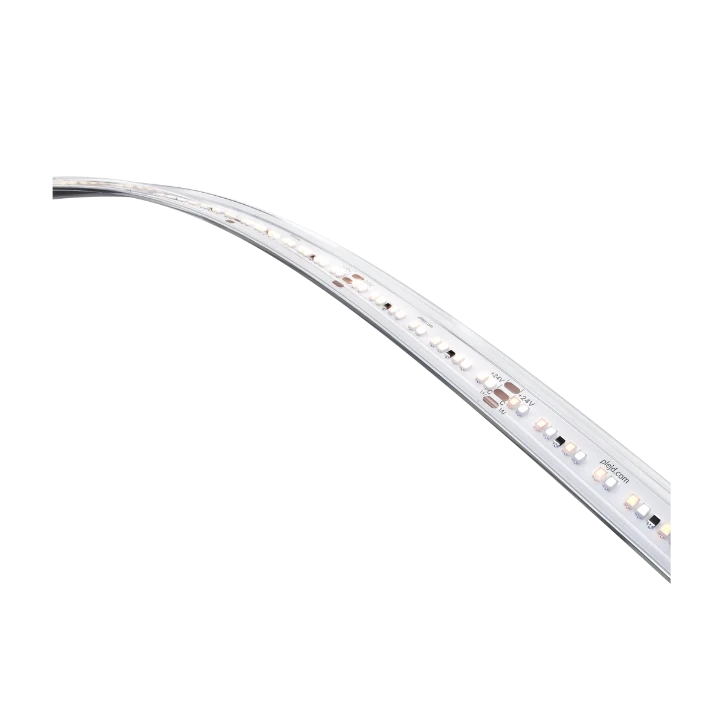

LED Strip 2 Meter
LED Strip 2 Meter
Product description
LST-01 ist ein dimmbarer LED Strip mit Tunable White zur Verwendung mit LED-75. Das Produkt ist in 50 mm-Segmente trennbar und entspricht der Schutzart IP66. Die hohe Dichte der LEDs auf dem Strip sorgt selbst bei dünnen Profilen für ein gleichmäßiges Erscheinungsbild hinter einem Diffusor. LST-01 kann mit dem mitgelieferten doppelseitigen Klebeband in Profilen mit einer Breite von mindestens 13 mm installiert werden. 2 Meter.
Product specifications
Model
Strip
Mounting method
Surface mounting/recessed mounting
Lamp type
LED not exchangeable
Lamp power per meter
9.6 W
Voltage type
DC
Number of nodes per foot
42
Lamp power per foot
2.9 W
Number of nodes per meter
140
Luminous flux per meter
960 lm
Colour temperature
2200 - 4000 K
Lamp voltage
24 - 24 V
Type of control gear
LED operating device voltage-controlled
Width
13 mm
Lowest bending radius
60 mm
Length of particular segments
50 mm
Rated lifetime L70/B50 at 25 °C
60000 h
With end piece
Yes
With connection set
Yes
Beam angle
113 °
Self-adhesive
Yes
Degree of protection (NEMA)
4X
Protection class according to IEC 61140
III
Max. system power
19 W
Colour of light
White
Colour rendering index CRI
90-100
Height/depth
9 mm
With protective cover
Yes
Type of wiring
Ending
Number of poles
3
Conductor cross section
0.34 mm²
Suitable for dimmer
Yes
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
85 %
Constant light output (CLO)
No
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Degree of protection (IP)
IP66
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Luminaire efficacy
100 lm/W
