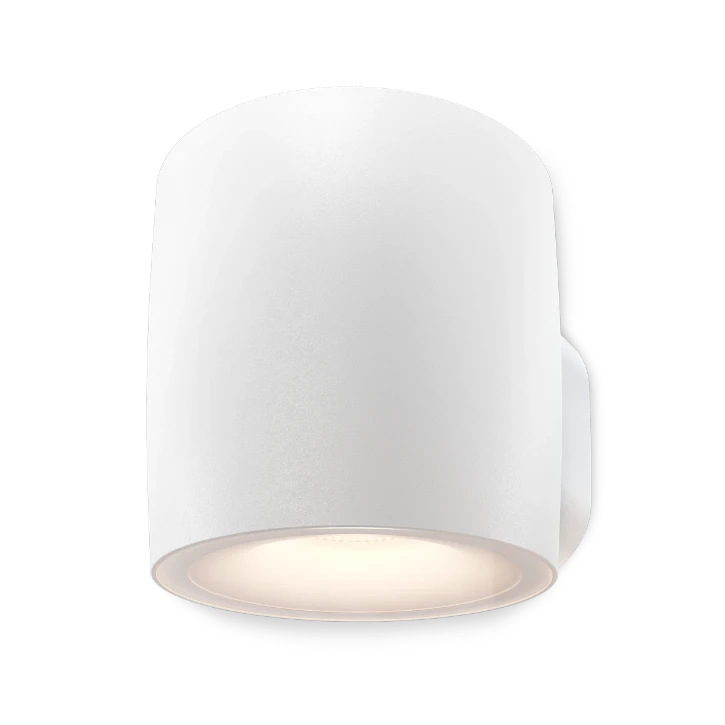

Ceiling-/wall luminaire Plejd OUT

Add to selection
General information
Ordercode YESSS
7602-3735
Product code
OUT-01-W
EAN code
7330018323116
Product group
Ceiling-/wall luminaire
Brand
Plejd
Serie
OUT
Type
OUT-01-W
Wandleuchte Weiß Wandleuchte Weiß
Product description

OUT-01 ist eine intelligente Außenwandleuchte mit Tunable White und eingebauten LED, die zum Beispiel zur Beleuchtung von Hausfassaden verwendet werden kann. Sie kann so eingestellt werden, dass sie nach oben, unten oder in beide Richtungen gleichzeitig leuchtet. Das Produkt verfügt über integrierte Zeitfunktionen wie z. B. eine Astro-Zeitschaltuhr, welche die Leuchte bei Sonnenuntergang automatisch ein- und bei Sonnenaufgang wieder ausschaltet. Außerdem bleiben Zeitfunktionen auch nach einem Stromausfall im System erhalten, da das Produkt über eine integrierte Backup-Batterie verfügt. OUT-01 verfügt über eine einstellbare Farbtemperatur und kann auf eine feste Temperatur eingestellt oder mit Dim-To-Warm gedimmt werden. Die Einstellungen können einfach in der Plejd-App konfiguriert werden. Weiß.

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
2
Type of control gear
Not required
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
220 - 240 V
Nominal current
1 - 43 mA
Colour temperature
2200 - 4000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Glass transparent
Dimming DSI
No
Dimming potentiometer (integrated)
No
Type of grid
None
Dimming manufacturer's proprietary system
Yes
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
41-80° - Wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
135 mm
Dimming programmable
Yes
Width
100 mm
Dimming RF
Yes
Height/depth
104 mm
Outer diameter
100 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
Refractor lens
With light sensor
No
Protection class according to IEC 61140
I
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Max. system power
10 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
60000 h
Colour of light
White
Colour rendering index CRI
90-100
Degree of protection (NEMA)
3
Rated ambient temperature according to IEC 62722-2-1
-25 - 35 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
0 - 10 W
Power factor
0.9
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Connection type
Push-in clamp
Surface protection housing
Powder coating
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
83 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
76 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
66 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
420
Max. number of luminaires per miniature circuit breaker C16 (MCB)
420
Flickering value Pst LM
0.3
Stroboscope effect value SVM
0.1
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
16
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Operation by Bluetooth
Yes
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
more specifications
Product information
Manufacturer's website
SHARE ARTICLE
Recommended products
  • Add to selection
    Plejd 7581-6960

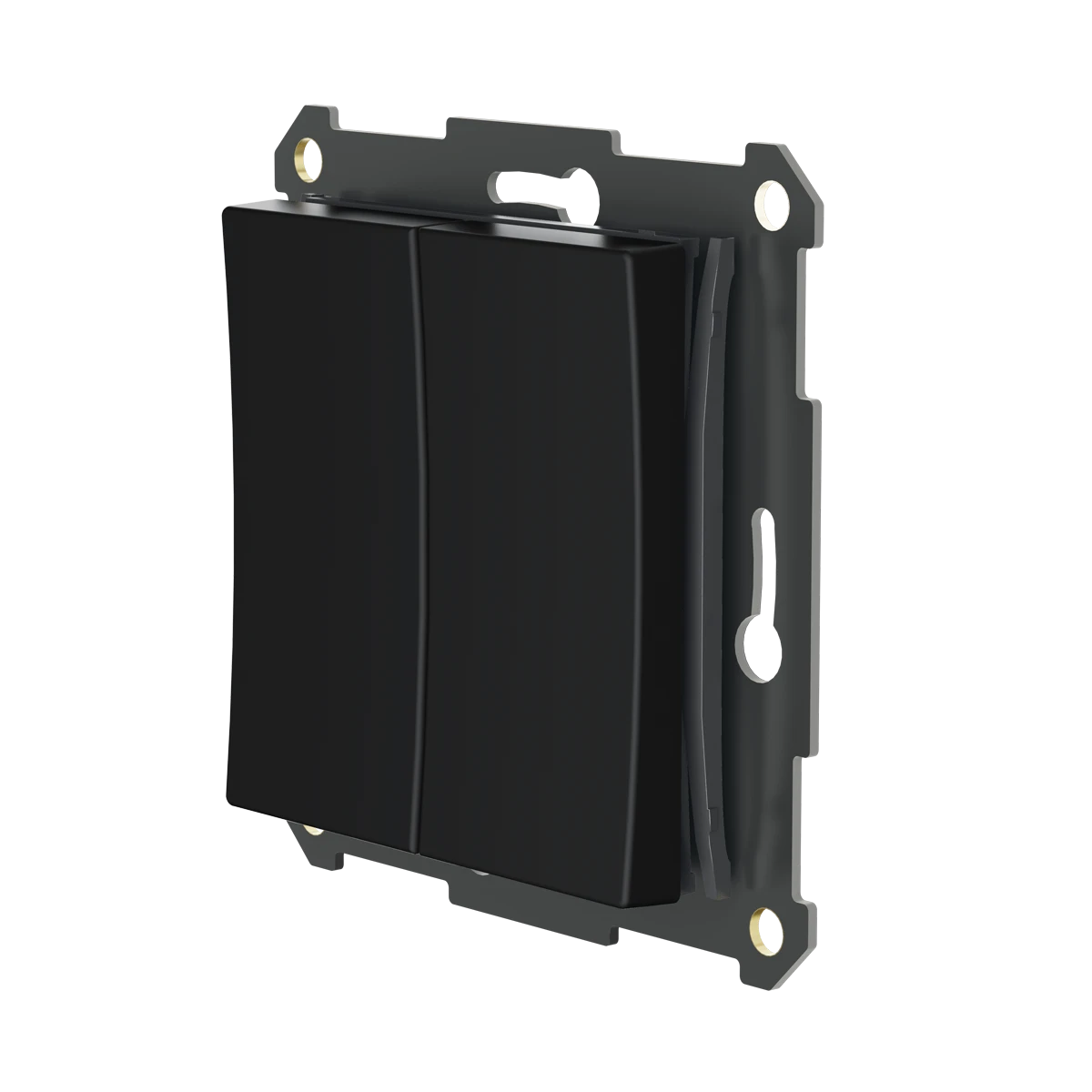

    Funktaster 55W
  • Add to selection
    Plejd 7596-8583
    Funktaster 55B
  • Add to selection
    Plejd 7594-1012
    Funkschaltmodul
  • Add to selection
    Plejd 7581-6961

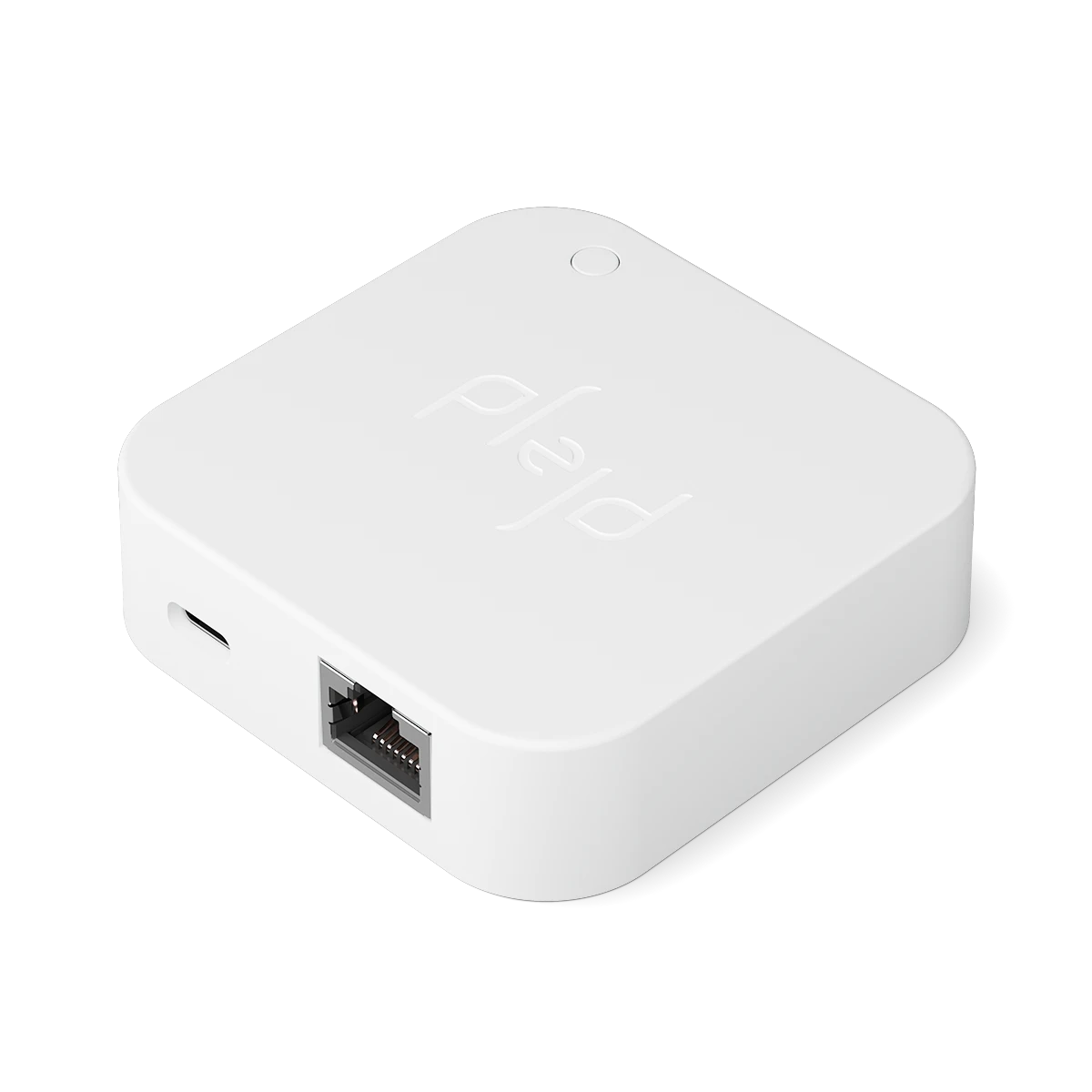

    Gateway
