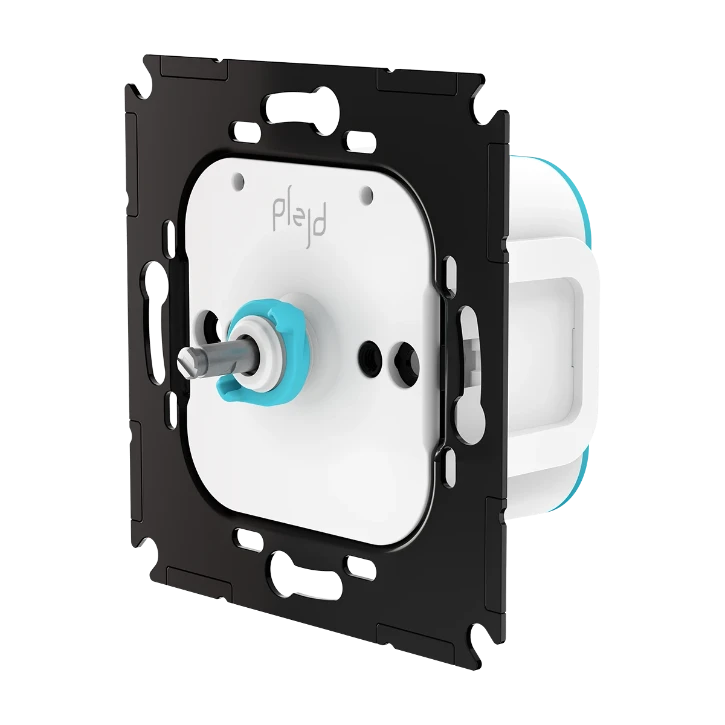

Dimmer Plejd
Add to selection
General information
Ordercode YESSS
7598-2425
Product code
VRI-03
EAN code
7330018321266
Product group
Dimmer
Brand
Plejd
Product specifications
Assembly arrangement
Basic element with central cover plate
Method of operation
Turn/push button
Light value memory
Yes
App control via Bluetooth
Yes
Dimming phase cut-on
Yes
Serial dimmer
No
Dimming phase cut-off
Yes
Type of load
Universal and LED Retrofit
Substation input
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
Yes
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Suitable for degree of protection (IP)
IP20
Transparent
No
Nominal voltage
220 - 240 V
Frequency
50 - 50 Hz
Impact strength
IK00
Control voltage
220 - 240 V
Device width
71 mm
Device height
71 mm
Device depth
46 mm
Connection type
Screwed terminal
Core cross section
0.5 - 4 mm²
Min. depth of built-in installation box
28 mm
Nominal power resistive load
0 - 300 W
Nominal power inductive load
0 - 0 VA
Nominal power capacitive load
0 - 300 VA
Max. switching power LED
200 W
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Min. Helligkeit steuerbar
Yes
Power consumption
0.3 W
