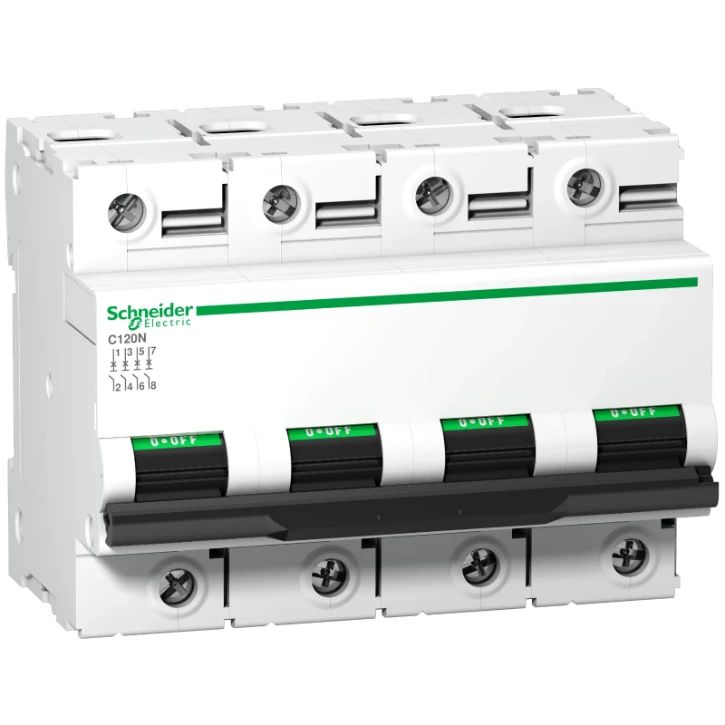

Miniature circuit breaker (MCB) Schneider Acti9 C120
Add to selection
General information
Ordercode YESSS
3230-2534
Product code
A9N18374
EAN code
3606480379451
Product group
Miniature circuit breaker (MCB)
Brand
Schneider
Serie
Acti9 C120
Type
A9N18374
Leitungsschutzschalter C120N, 4P, 100A, C Charakteristik, 10kA
Leitungsschutzschalter C120N, 4P, 100A, C Charakteristik, 10kA
Product description
Leitungsschutzschalter Acti 9 K60N, 6kA (IEC/EN 60898-1). 1-polig, Nennstrom 16A, C-Charakteristik, Betriebsspannung (Ue) 400V AC, Isolationsspannung (Ui) 500V AC. Doppelfunktionsklemme an der Geräteunterseite für getrennten Anschluss von Gabel-Phasenschiene und Leiter. Käfigklemme an der Geräteoberseite. Sprungschaltung für verschleißarmes Schalten der Kontakte. Farbton RAL 9003. Der K60N Leitungsschutzschalter erfüllt folgende Normen- IEC/EN 60898-1. Des Weiteren ist diese Baureihe VDE zertifiziert.
Product specifications
Release characteristic
C
Rated current
100 A
Number of poles (total)
4
Number of protected poles
4
Width in number of modular spacings
6
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20 kA
Built-in depth
44 mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Additional equipment possible
Yes
Frequency
50 - 60 Hz
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Overvoltage category
4
Pollution degree
3
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 70 °C
Connectable conductor cross section multi-wired
1 - 35 mm²
Connectable conductor cross section solid-core
1.5 - 50 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
2 W
