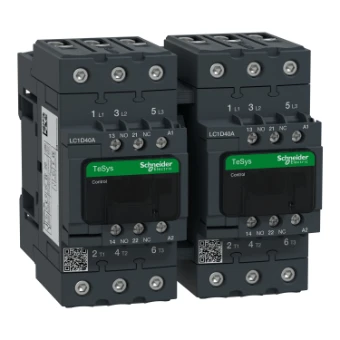

Combination of contactors Schneider TeSys Control - D

Add to selection
General information
Ordercode YESSS
0883-2868
Product code
LC2D40AV7
EAN code
3389118340824
Product group
Combination of contactors
Brand
Schneider
Serie
TeSys Control - D
Type
LC2D40AV7
Wendeschützkombination, 3p+1S+1Ö, 18,5kW/400V/AC3 40A, Spule 400V 50/60Hz Wendeschützkombination, 3p+1S+1Ö, 18,5kW/400V/AC3 40A, Spule 400V 50/60Hz
Product description

Standardschütze 0,06 -75 kW Neben ansprechendem und funktionellem Design bieten die Schütze TeSys D schnelle und einfache Installation bei gleichzeitig schmaler Baubreite von 45 bzw. 55 mm. Sie erfüllen internationale Standards. Die Leistungsgrößen 40 bis 65 A sind mit EverLink Klemmen ausgestattet. Diese sind patentiert und gewährleisten eine zuverlässige und dauerhafte Verbindung.

Product specifications
Function
Reversing contactor
Rated control supply voltage AC 50 Hz
400 - 400 V
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
18.5 kW
Rated operation current Ie at AC-3, 400 V
40 A
Rated control supply voltage AC 60 Hz
400 - 400 V
Rated operation power NEMA
22.4 kW
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP20
Degree of protection (NEMA)
Other
Rated operation current Ie at AC-1, 400 V
60 A
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Suitable for rail mounting
Yes
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
440 - 440 V
Operating voltage AC 60 Hz
440 - 440 V
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Width
119 mm
Height
122 mm
Depth
120 mm
