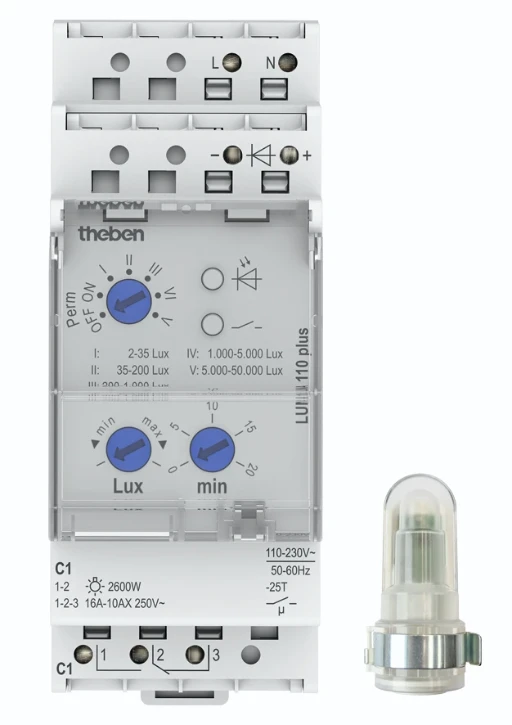

Twilight switch for distribution board Theben
Add to selection
General information
Ordercode YESSS
6773-9704
Product code
1100910
EAN code
4003468110027
Product group
Twilight switch for distribution board
Brand
Theben
Product specifications
Rated voltage
230 V
Rated switch current
16 A
Adjustment range brightness value
2 - 50000 lx
With programmable overnight shutoff
No
Mounting method
DIN rail
Rated frequency
50 - 60 Hz
Max. incandescent lamp load
3600 W
Max. load fluorescent lamp
3600 VA
Max. load fluorescent lamp (Duo circuit)
3600 VA
Max. load fluorescent lamp (parallel compensated)
1200 VA
Push button input
No
Max. conductor length light sensor
100 m
Protection class light sensor
II

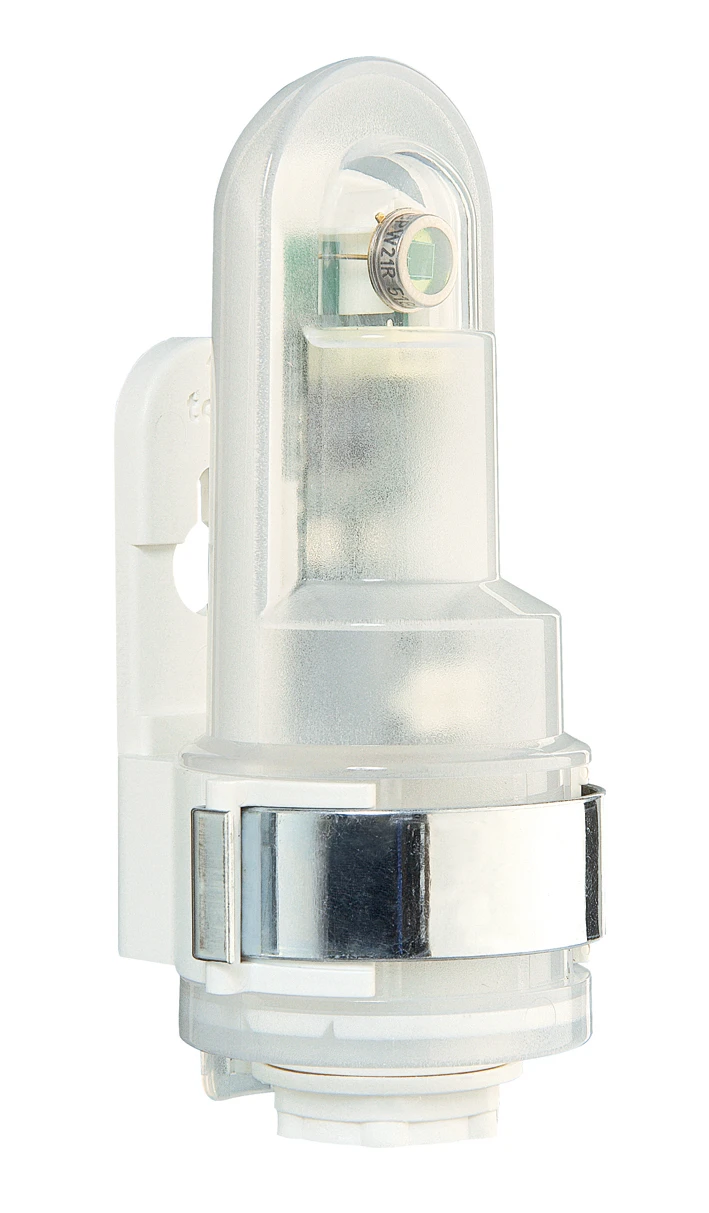

Mounting method light sensor
Wall surface mounted
Width in number of modular spacings
2
Built-in depth
69.2 mm
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP65
Max. switching power LED
600 W
