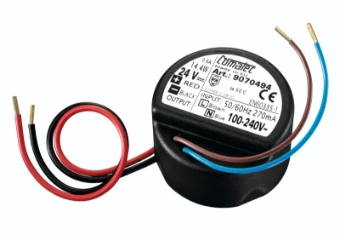

DC-power supply Theben
Add to selection
General information
Ordercode YESSS
1078-4146
Product code
9070494
EAN code
4003468904534
Product group
DC-power supply
Brand
Theben
Type
Netzteil CO2-Sensor
Netzteil CO2 Sensor
Netzteil CO2 Sensor
Product description
Netzteil 24V/12 W für UP-Montage unter dem CO2 Sensor.
Product specifications
Voltage type (supply voltage)
AC
Secondary voltage adjustable
No
Power output
12 W
Output voltage stabilized
No
Stabilized
No
Short-circuit-proof
No
1st secondary output voltage
24 - 24 V
Max. output current 1
0.5 A
Nominal value output voltage 1
24 V
Rated supply voltage AC 50 Hz
230 - 230 V
Degree of protection (IP)
IP65
Nominal value output current 1
0.5 A
Power consumption
12 VA
Type of electric connection
Other
Suitable for rail mounting
No
Suitable for distribution board
No
Built-in height
30 mm
Direct mounting possible
Yes
Width
50 mm
Height
50 mm
Depth
30 mm
Built-in width
56 mm
Suitable for safety functions
No
SIL according to IEC 61508
None
Degree of protection (NEMA)
4
