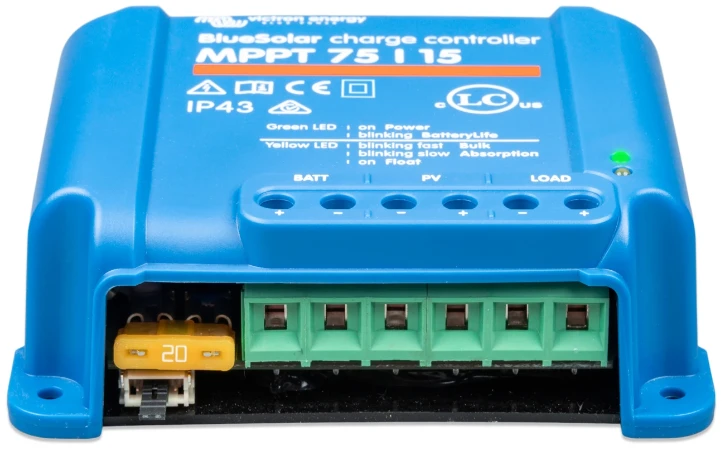

Photovoltaics charge controller VICTRON
Add to selection
General information
Ordercode YESSS
7556-9650
Product code
SCC010015050R
EAN code
8719076025320
Product group
Photovoltaics charge controller
Brand
VICTRON
Type
148150
Product specifications
Max. load current
15 A
Degree of protection (IP)
IP43
Low voltage disconnect
No
Display
Optional
MPP-tracking
Yes
Height
100 mm
Width
113 mm
Depth
40 mm
Rated system voltage 12 V DC
Yes
Rated system voltage 24 V DC
Yes
Rated system voltage 36 V DC
No
Rated system voltage 48 V DC
No
Rated system voltage 60 V DC
No
Rated system voltage 72 V DC
No
Max. loading current at 40 °C
15 A
Overload protection
No
Overtemperature protection
Yes
Short-circuit protected
Yes
Suitable for temperature compensated loading
Yes
With temperature sensor
No
Ambient temperature
-30 - 60 °C
Communication bus
Other
