LED-lamp/Multi-LED Dotlux
Add to selection
General information
Ordercode YESSS
6972-9193
Product code
4964-030024
EAN code
4260629145834
Product group
LED-lamp/Multi-LED
Brand
Dotlux

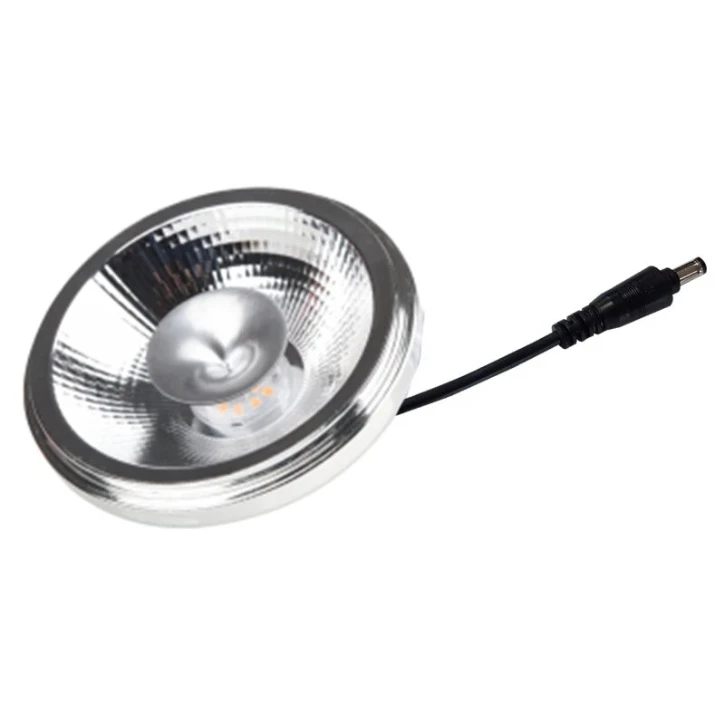

DOTLUX LED reflector lamp AR111 without driver 5.5x2.1 hollow receptacle
DOTLUX LED reflector lamp AR111 without driver 5.5x2.1 hollow receptacle plug LED module wattage: 11W 350 mA
Product description
Original halogen design enables maximum compatibility with existing luminaire systemsTraditional lighting effect thanks to retro reflector technology creates a beautiful ambienceLarge-area cooling directly via aluminum reflectorOptimized lightweight design, also suitable for clip mountingGlare reduction through hidden LED arrangement System plug enables flexible power supply selection (CASAMBI, ZIGBEE, trailing edge dimmable, DALI / 1-10V, non-dimmable) and therefore also ideally suited for new-build projects
Product specifications
Nominal current
0 - 0 mA
Power factor
0.9
Luminous flux
950 - 950 lm
Colour rendering index CRI
80-89
Length
40 mm
Filament lamp
No
Luminous intensity
6919.02 cd
Average nominal lifespan
15000 h
Colour temperature
3000 - 3000 K
Colour housing
Grey
Degree of protection (IP)
IP20
Nominal voltage
230 - 230 V
Colour
Other
Colour consistency (McAdam ellipse)
SDCM6
Weighted energy consumption in 1000 hours
11 kWh
Voltage type
AC
With remote control
No
Lamp shape
Reflector
Type of glass/cover
Clear
Lamp designation
AR111
Diameter
111 mm
Min. number of switching cycles
30000
Colour of light according to EN 12464-1
Warm white <3300 K
Remote operation possible
No
Rated luminous flux according to IEC 62612
950 lm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for electronic ballast
No
Geeignet für magnetisches Vorschaltgerät
Yes
Energieeffizienzklasse nach EU-Richtlinie 2019/2015
F
With twilight switch
No
Dimming phase cut-on
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimmung Bluetooth
No
Dimmung Wi-Fi
No
