LED driver Dotlux
Add to selection
General information
Ordercode YESSS
7547-7614
Product code
5068-1
EAN code
4260712972644
Product group
LED driver
Brand
Dotlux

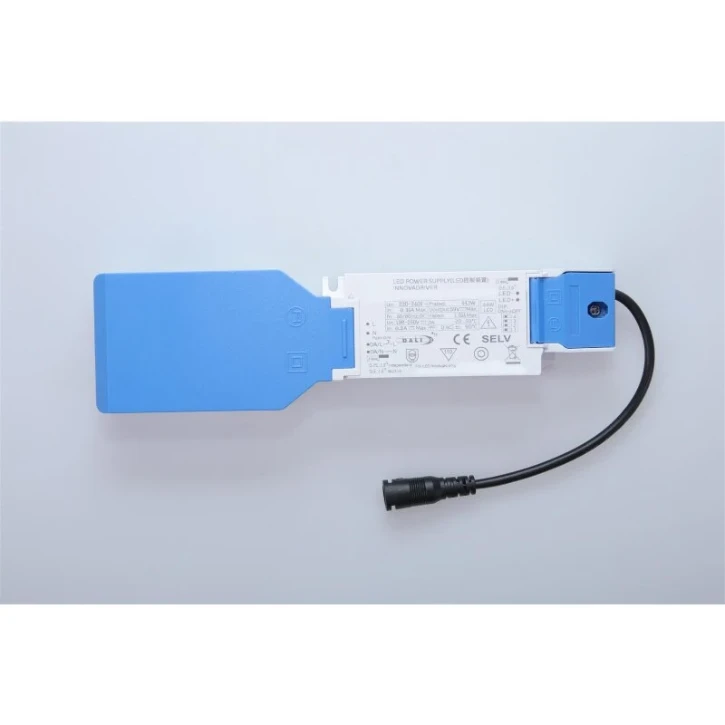

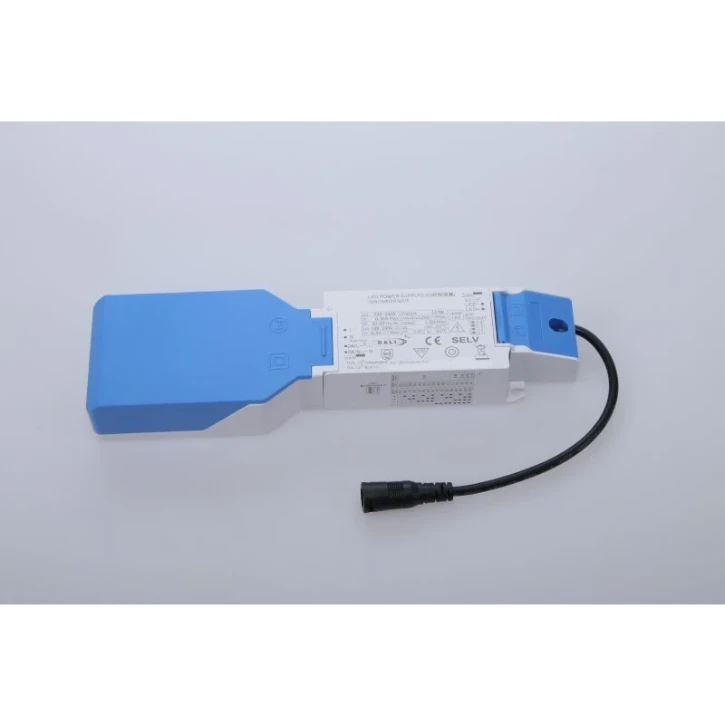

LED power supply CC 12-40W 300-1050mA 6-52V PUSH dimmable DALI-2
LED power supply CC 12-40W 300-1050mA 6-52V PUSH dimmable DALI-2 suitable for central battery through-wirable
Product description

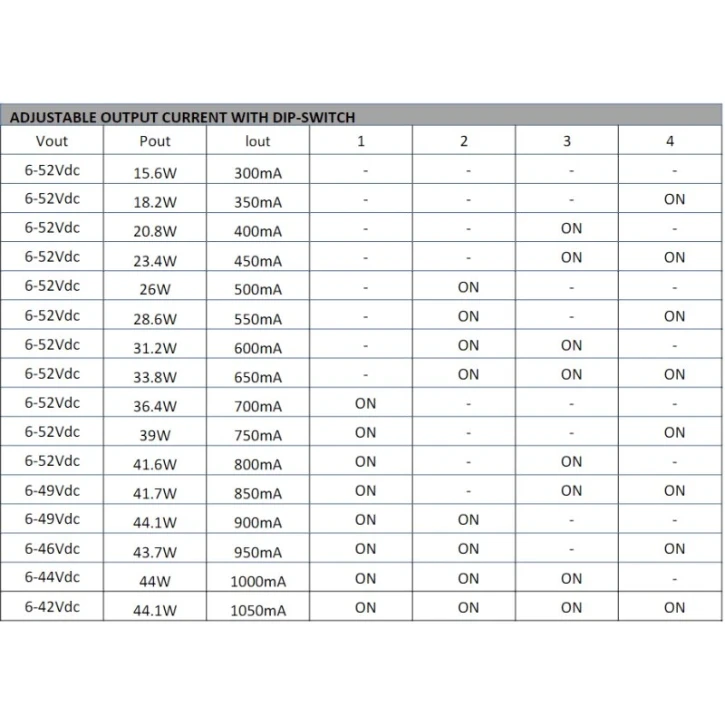

The power supply unit is dimmable via DALI-2With constant current technology (CC), it is suitable for luminaires with constant currentThe connected constant current luminaires can be dimmed between 1%-100The output current is adjustable: 300/350/400/450/500/550/600/650/700/750/800/850/900/950/1000/1050mAThe power supply unit is set to 950mA as standardSuitable for use in emergency lighting systems
Product specifications
Output power
12 - 40 W
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Suitable for constant current
Yes
Dimming DSI
No
Housing
Plastic housing
Suitable for constant voltage
No
Dimming DMX
No
Output voltage
6 - 52 V
Degree of protection (IP)
IP20
Dimming potentiometer (integrated)
No

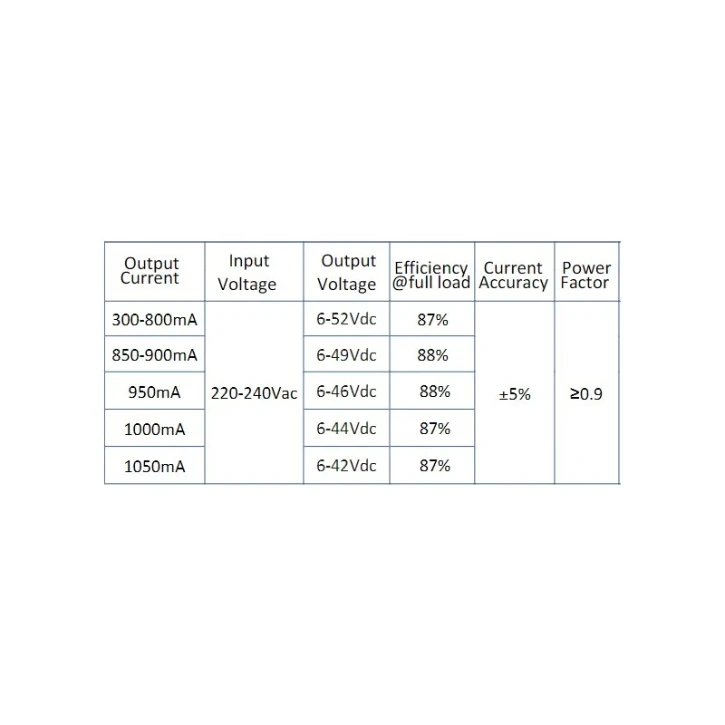

Output current
1.05 - 1.05 mA
Suitable for DC-voltage (primary side)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Length
170 mm
Dimming mains voltage modulation
No
Protection class
II
Width
65 mm
Dimming phase cut-off
No
Height
30 mm
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
Yes
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Power consumption
40 W
