Switch disconnector Eaton

Add to selection
General information
Ordercode YESSS
1270-7050
Product code
127733
EAN code
04015081251438
Product group
Switch disconnector
Brand
Eaton

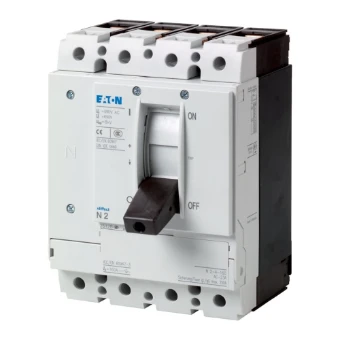

Switch-disconnector 4p 200A 1000VDC Switch-disconnector 4p 200A 1000VDC
Product description

Switch-disconnectors N..DC in the special version for up to 1500 V DC can be used on 1- or 2 poles. The comply with the isolation properties even for earthed IT networks. Accessories, such as bridge kits, connection terminals and door coupling rotary handles enable individual installation in the most varied of distribution systems. Auxiliary switches, voltage releases and remote operators facilitate signaling and automation. Notes: main switch characteristics including positive drive according to IEC/EN 60204 und VDE 0113. Isolating characteristics according to IEC/EN 60947-3 and VDE 0660 . Terminal type: a series connection is required for 2 pole switching according to the specified connecting possibilities. See accessories bridge kits. Switch can not be combined with plug-in / withdrawable units and / or connection on rear.

Product specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
0 kW
Number of switches
1
Number of poles
4
Version as main switch
Yes
Rated operating voltage
1000 - 1000 V
Version as maintenance-/service switch
Yes
Version as safety switch
No
Rated permanent current at AC-21, 400 V
0 A
Version as emergency stop installation
Yes
Rated permanent current at AC-23, 400 V
0 A
Rated operation power at AC-3, 400 V
0 kW
Max. rated operation voltage Ue AC
0 V
Rated short-time withstand current lcw
3.6 kA
Switching power at 400 V
0 kW
Conditioned rated short-circuit current Iq
0 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Rocker lever
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Colour control element
Black
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width
140 mm
Height
184 mm
Depth
149 mm
more specifications
Product information
Manufacturer's website
